Product Description

Material  :  tantalum 10% tungsten refractory alloys (Ta10W, TaW10, KBI-10)
TaW10 alloy, Tantal 10% Wolfram, Tantal 10 Wolfram,  Tantal 10% Wolfram.
Temper condition: annealed
Specs : according to ASTM B708 -98 R05255.
Chemical composition :

Physical & Mechanical property :
TaW10 sheet + TaW10% strip
            Tensile strength  482 MPa min.
            Yield strength     414 MPa min.
            Elongation          15  %min
TaW10 plate + TaW10% plate
            Tensile strength  482 MPa min.
            Yield strength     379  MPa min.
            Elongation          20   %min
Dimensions :
TaW10 sheet + TaW10% strip
Thickness .0040" up to .060" x Width up to 15.75" x Length up to 40"   or
Thickness 0.10 up to 1.524mm x Width up to 400mm max x Length up to 1000mm max.

TaW10 plate + TaW10% plate
Thickness .060" up to .50" x Width up to 31.50" x Length up to 80"   or
Thickness 1.525 up to 12.70mm x Width up to 800mm max x Length up to 2000mm max.

Typical size:
Thickness 1.0mm x160mm x780mm
Thickness 0.4mm x 305mm x 455mm
Thickness 0.05mm X 56mm X 108mm
Thickness 0.05mm X 76mm X 500mm
Thickness 0.05mm X 76mm X 500mm
Thickness 0.05mm x width 150mm x 500mm;
Thickness 0.05mm x width 300mm x length 600mm;
Thickness 0.1mm(+/-0.01) x width 60mm (+/-0.5) x 330mm (+/-0.5);
Thickness 0.2mm(+/-0.01) x width 60mm (+/-0.5) x 330mm (+/-0.5);
Thickness 0.1mm(+/-0.01) x width 50mm (+/-0.5) x 330mm (+/-0.5);
Thickness 0.2mm(+/-0.01) x width 50mm (+/-0.5) x 330mm (+/-0.5);

Thickness .005"-.009" x Width up to 4"  x Random length;
Thickness .001"-.010" x Width up to 12" x Random length;
Thickness .010"-.020" x Width up to 24" x Random length;
Thickness .025"-.500" x Width up to 24" x Random length;
Thickness .500"-4.00" x Width up to 26" x Random length;

Trade name : tantalum alloy plate,tantalum alloy sheet, tantalum alloy foil,  tantalum alloy strip, tantalum alloy band, tantalum alloy ribbon, tantalum 10% tungsten plates, tantalum sheets (TaW10), tantalum alloy foils, tantalum alloy strips, tantalum alloy bands, tantalum alloy ribbons, tantalum tungsten alloy plate, tantalum tungsten alloy sheet, tantalum tungsten alloy foil, tantalum tungsten alloy strip, tantalum tungsten alloy band, tantalum tungsten alloy ribbon, tantalum tungsten alloy plates, tantalum tungsten alloy sheets, tantalum tungsten alloy foils, tantalum tungsten alloy strips, tantalum tungsten alloy bands, tantalum tungsten alloy ribbons, tantalum (Ta10W) film, tantalum tungsten thin film, tantalum tungsten gasket, tantalum alloy gaskets, tantalum alloy clad, tantalum alloy cladding, tantalum tungsten alloy liner, tantalum tungsten alloy shield, tantalum tungsten alloy  layer, tantalum (TaW10) layers, Tantal 10 Wolfram, Tantal 10 % Wolfram, Tantalum-Tungsten sheet TaW10, TaW10 sheet, Ta-90/W-10 %wt , Ta-90/W-10  %wt , Ta-W, Ta 10% W sheet,  90 Ta 10 W alloy sheet, tantalum 10 Tungsten sheet,  etc.,

Standard Specification ASTM B 708 -05 for Tantalum Ribbon, Tantalum Alloy Ribbon, Tantalum Strip, Tantalum Alloy Strip, Tantalum Foil, Tantalum Alloy Foil, Tantalum Sheet, Tantalum Alloy Sheet, Tantalum Plate, Tantalum Alloy Plate.

This specification covers unalloyed and alloyed Tantalum Ribbon, Tantalum Alloy Ribbon, Tantalum Strip, Tantalum Alloy Strip, Tantalum Foil, Tantalum Alloy Foil, Tantalum Sheet, Tantalum Alloy Sheet, Tantalum Plate, Tantalum Alloy Plate as follows:
1. ASTM B 708 -05 UNS R05200, unalloyed tantalum, electron-beam furnace or vacuum-arc melt, or both.
2. ASTM B 708 -05 UNS R05400, unalloyed tantalum, powder-metallurgy consolidation.
3. ASTM B 708 -05 UNS R05255, tantalum alloy, 90% tantalum 10% tungsten, electron-beam furnace or vacuum-arc melt, or both.
4. ASTM B 708 -05 UNS R05252, tantalum alloy, 97.5% tantalum 2.5% tungsten, electron-beam furnace or vacuum-arc melt, or both.
5. ASTM B 708 -05 UNS R05240, tantalum alloy, 60% tantalum 40% columbium, electron-beam furnace or vacuum-arc melt.

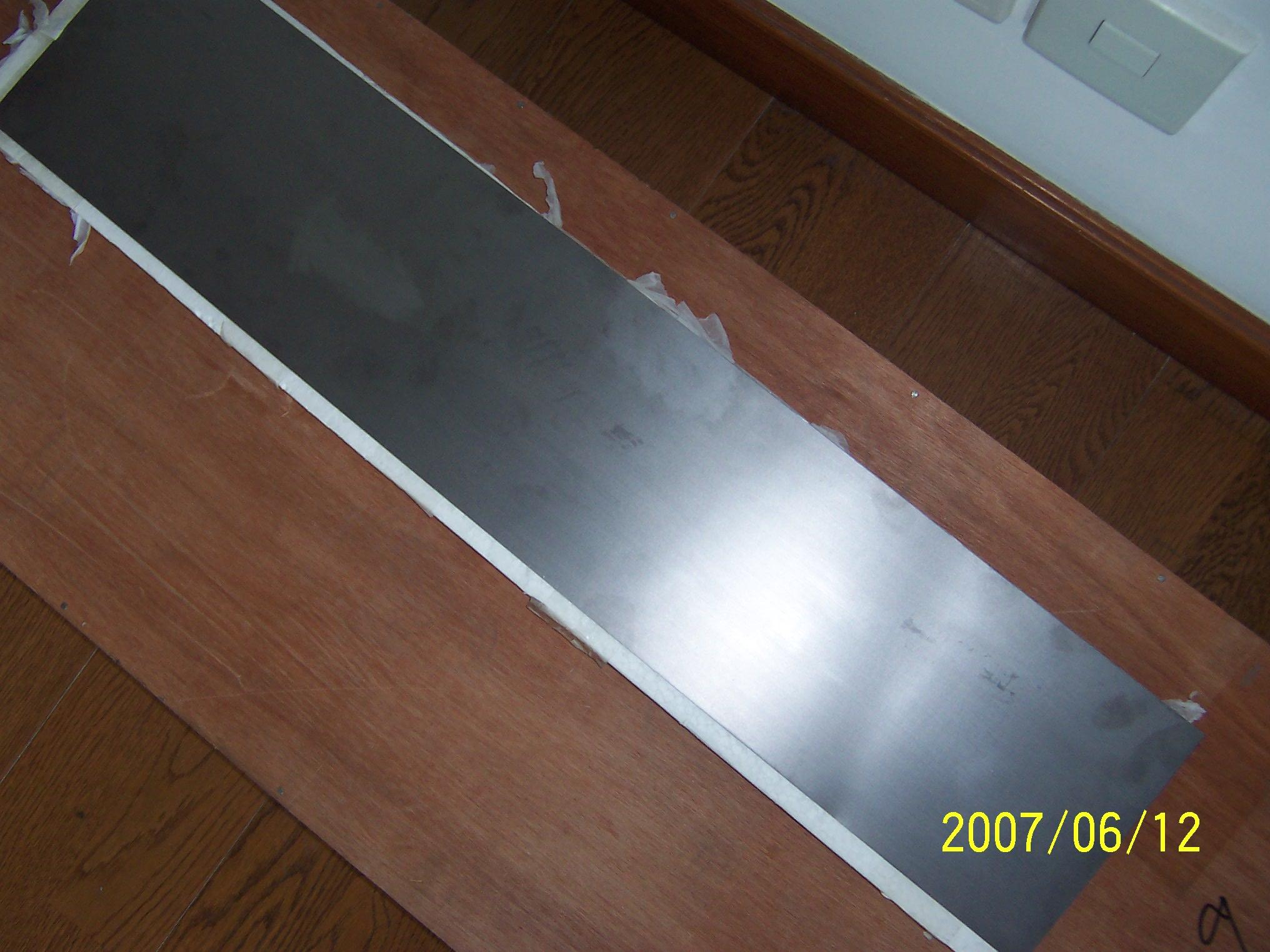

Product Image
