Specs : according to ASTM F 560 08 UNS R05200.
Temper : As Drawn, cold-worked or annealed and purity conforms to the recognized standard by The Food and Drug Administration (FDA) for Unalloyed Tantalum Tubing for Surgical Implant Applications.
Size Available :

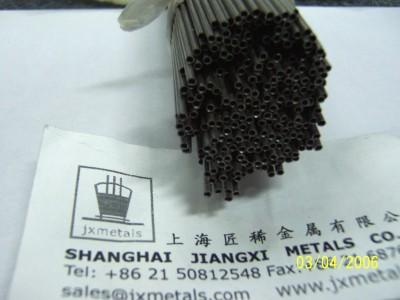

Tantalum capillary, tantalum fine tube, tantalum micro tube
Outer Diameter 0.007875" up to 0.40" x Wall Thickness .001" up to .020" x Length up to 8 ft max. or
Outer Diameter 0.508 mm up to 2.032 mm x Wall Thickness 0.025mm up to 0.5 mm x Length up to 2540 mm max.
Typical Sizes:
| TANTALUM MARKER BANDS(TANTALUM RADIOPAQUE RINGS) -SURGICAL IMPLANT APPLICATIONS |
|
| Material No. |
REV |
"D"WALL THICKNESS +.001/-.0005 |
DIM "A" ~ O.D. (REF) |
|
DIM "B" ~ I.D. ±.0005 |
|
DIM "C" ~LENGTH ±.005 |
|
| 435291-01 |
A |
0.00275 |
0.1455 |
OD |
0.140(±.001) |
ID |
0.055 |
LG |
| 435291-02 |
XX |
0.0025 |
0.160 |
OD |
0.155(±.001) |
ID |
0.055 |
LG |
| 435291-03 |
XX |
0.0025 |
0.065 |
OD |
0.059(±.001) |
ID |
0.118 |
LG |
| 435291-04 |
XX |
0.0025 |
0.083 |
OD |
0.079 |
ID |
0.118 |
LG |
| 435291-05 |
A |
0.0045 |
0.109 |
OD |
0.100 |
ID |
0.118 |
LG |
| 435291-06 |
A |
0.0040 |
0.120 |
OD |
0.112 |
ID |
0.118 |
LG |
| 435291-07 |
A |
0.0025 |
0.0508 |
OD |
0.0458 |
ID |
0.039 |
LG |
| 435291-08 |
A |
0.0025 |
0.047 |
OD |
0.042(±.001) |
ID |
0.118 |
LG |
| 435291-09 |
A |
0.003(±.0005) |
0.049 |
OD |
0.043 |
ID |
0.075 |
LG |
| 435291-10 |
A |
0.0035 |
0.0435 |
OD |
0.0365 |
ID |
0.118 |
LG |
| 435291-11 |
XX |
0.0040 |
0.127 |
OD |
0.119 |
ID |
0.118 |
LG |
| 435291-12 |
A |
0.0040 |
0.131 |
OD |
0.123 |
ID |
0.118 |
LG |
| 435291-13 |
A |
0.0040 |
0.114 |
OD |
0.106(±.0006) |
ID |
0.118 |
LG |
| 435291-14 |
XX |
0.0025 |
0.069 |
OD |
0.064 |
ID |
0.050 |
LG |
| 435291-15 |
B |
0.0025 |
0.087 |
OD |
0.082 |
ID |
0.050 |
LG |
| 435291-16 |
B |
0.0025 |
0.103 |
OD |
0.098 |
ID |
0.050 |
LG |
| 435291-17 |
B |
0.0025 |
0.113 |
OD |
0.108 |
ID |
0.050 |
LG |
| 435291-18 |
01 |
0.003(±.0005) |
0.044 |
OD |
0.038 |
ID |
0.057 |
LG |
| 435291-19 |
01 |
0.003(±.0005) |
0.034 |
OD |
0.028 |
ID |
0.057 |
LG |
| 435291-20 |
01 |
0.003(±.0005) |
0.146 |
OD |
0.140 |
ID |
0.090 |
LG |
| 435291-21 |
01 |
0.00275 |
0.1455 |
OD |
0.140(±.001) |
ID |
0.055 |
LG |
| 435291-22 |
01 |
0.0045 |
0.109 |
OD |
0.100 |
ID |
0.118 |
LG |
| 435291-23 |
01 |
0.0040 |
0.120 |
OD |
0.112 |
ID |
0.118 |
LG |
| 435291-24 |
01 |
0.0040 |
0.131 |
OD |
0.123 |
ID |
0.118 |
LG |
| 435291-25 |
01 |
0.0040 |
0.114 |
OD |
0.106(±.0006) |
ID |
0.118 |
LG |
| 435291-26 |
A |
0.0027 |
0.0475 |
OD |
0.042 |
ID |
0.118 |
LG |
| 435291-27 |
A |
0.0027 |
0.0525 |
OD |
0.047 |
ID |
0.118 |
LG |
| 435291-28 |
02 |
0.0027 |
0.1055 |
OD |
0.100 |
ID |
0.118 |
LG |
| 435291-29 |
A |
0.0027 |
0.1215 |
OD |
0.116 |
ID |
0.118 |
LG |
| 435291-30 |
A |
0.0027 |
0.1445 |
OD |
0.139 |
ID |
0.118 |
LG |
| 90110749-03 |
A |
.004~.005 |
.053±.002 |
OD |
.043(+.003/-0) |
ID |
0.075±.005 |
LG |
| 435308-01 |
A |
0.0020 |
0.0820 |
OD |
0.0780 |
ID |
0.0450 |
LG |
| 435308-02 |
XX |
0.0020 |
0.0830 |
OD |
0.0790 |
ID |
0.0450 |
LG |
| 435308-03 |
A |
0.0020 |
0.0820 |
OD |
0.0780 |
ID |
0.0450 |
LG |
More typical sizes refer to the bottom of this webpage >>>
Typical application: medical grade of tantaum tube used as radiopaque markers and the surgical implants material or medical device.
Tantalum Marker Bands are marking rings made of tantalum that are commonly used in the medical device field. These marker rings are usually applied to specific locations on medical devices such as catheters or implants to provide visual marking. Due to Tantalum's biocompatibility, high density and X-ray transparency, Tantalum Marker Bands have become a common choice in the medical industry, especially in radiological and interventional procedures. They help doctors and healthcare professionals pinpoint and track specific areas to ensure accurate diagnosis and treatment. Marker bands are made by cutting tantalum small tubing or tantalum capillary tubing which can be used as radiopaque markers during angioplasty and other minimally-invasive catheter procedures. Typically, Tantalum seamless tubing may be cut into tantalum cut tubing used as radiopaque marker bands and other application, tantalum marker bands are used as medical device components where radiopacity is required. e.g. tantalum capillary or tantalum cut tubing ASTM F560 (medical grade) was cut into the miniature tantalum markers(radiopaque marker), which is the suture radiopaque marker placement, tantalum myocardial markers (inner diameter 0.8 mm, outer diameter 1.3 mm, length 1.5 to 3.0 mm) were inserted beneath the left ventricular (LV) epicardial surface along 4 equally spaced longitudinal meridians for LV volume determination.
The implantation of tantalum as a radiopaque marker into the submucosal layer of the GI tract in a porcine model is technically feasible and safe. Long-lasting fluoroscopically visible tantalum markings could facilitate subsequent surgical and radiation therapy, in which, Gold and tantalum are mentioned as materials which are more visible under X-ray illumination than the stainless steel metal of the stent.
Tantalum tubing can be processed into tantalum ring electrodes.
ASTM F 560 medecal grade Tantalum, element #73, is a shiny, flexible, and highly radio-opaque metal. Though more brittle than stainless steel, tantalum exhibits high ductility and resistance to corrosion.
ASTM F 560 medecal grade Tantalum is ideal for viewing and supporting, but more biocompatible options exist.
ASTM F 560 medecal grade Tantalum is a highly radiopaque material, which is easily seen on fluoroscopy.
ASTM F 560 medecal grade tantalum exhibits excellent radiopacity and it is also Magnetic Resonance Imaging (MRI)-compatible.
The bioinertness of tantalum was reconfirmed as was its suitability for use as skeletal and soft tissue radiographic markers.
Trade name : ta tube, ta tubing, ta tubes, ASTM F560 tantalum tube, ASTM F 560 tantalum, Tantalum tube ASTM F 560, tantalum tubing F560, tantalium tube, tantalium tubing, surgical tantalum, tantalum implant, tantalum implants, tantalum per ISO 13782 -Implants for surgery -- Metallic materials -- Unalloyed tantalum for surgical implant applications, tantalum medical devices in conformity with ISO 13485 quality management system, medical tantalum tubings, ta pipe, ta pipes, ta capillary tube, ta capillaries, ta capillary, medical grade tantalum, medical device tantalum, medical tantalum precision tube, medical tantalum precision tubing, medical tantalum micro tubes, medical tantalum micro tubing, medical grade tantalum capillary tube, etc.,
Standard Specification for Unalloyed Tantalum for Surgical Implant Applications (ASTM F 560 - 05 UNS R05200, ASTM F 560 - 05 UNS R05400). This specification is under the jurisdiction of ASTM committee F04 on Medical and Surgical Materials and Devices (orthopaedic medical devices) and is the direct responsibility of Subcommittee F04.12 on Metallurgical Materials.
This Specification covers the chemical requirements, mechanical properties, and metallurgical requirements for unalloyed tantalum wire, unalloyed tantalum rod, unalloyed tantalum tube, unalloyed tantalum ribbon, unalloyed tantalum strip, unalloyed tantalum foil, unalloyed tantalum sheet, unalloyed tantalum plate, etc., used in the manufacture of surgical implants.
Referenced Standards :
ASTM B 364 Specification for Tantalum and Tantalum Alloy Ingots;
ASTM B 365 Specification for Tantalum rod + Tantalum Alloy Rod + Tantalum Wire + Tantalum Alloy Wire;
ASTM B 708 Specification for Tantalum Ribbon, Tantalum Alloy Ribbon, Tantalum Strip, Tantalum Alloy Strip, Tantalum Foil, Tantalum Alloy Foil, Tantalum Sheet, Tantalum Alloy Sheet, Tantalum Plate, Tantalum Alloy Plate;
ASTM E 8 Test Methods for Tension Testing of Metallic Materials;
ASTM E 29 Practice for Using Significant Digits in Test Data to Determine Conformance with Specifications;
ASTM F 981 Practice for Assessment of Compatibility of Biomaterials for Surgical Implants with Respect to Effect of Materials on Muscle and Bone;
ASQ C1 Specification of General Requirements for a Quality Program;
ISO 6892 Metallic Materials Tensile Testing at Ambient Temperature;
+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
Standard Specification ASTM B 521 -98 for Tantalum Tube + Tantalum Alloy Tube Seamless and Welded.
This specification covers tantalum and tantalum alloy seamless and welded tubes of the following grades:
1. ASTM B 521 -98 UNS R05200, unalloyed tantalum, vacuum melt;
2. ASTM B 521 -98 UNS R05200, unalloyed tantalum, powder-metallugry consolidation;
3. ASTM B 521 -98 UNS R05255, tantalum alloy, 90% tantalum 10% tungsten alloy, vacuum melted;
4. ASTM B 521 -98 UNS R05252, tantalum alloy, 97.5% tantalum 2.5% tungsten alloy, vacuum melted;
5. ASTM B 521 -98 UNS R05240, tantalum alloy, 60% tantalum 40% columbium, electron-beam furnace or vacuum-arc melt, or both.
